ZF490A Model Pocket Envelope Machine
Introduce


Take the paper which has been cut outside onto the paper table of this machine, paper can be automatic feeding from bottom and the machine needn’t stop. Machine also feed the white latex for paste. Via the first folding, paste white latex glue (two lines of glue), and second folding. Then via correct position(for easily adjust and patching silicon tape). And gluing and patching silicon paper tape on sealing flap(also the double side adhesive tape is ok,and hot melt adhesive is ok too,but it should buy the hot melt Applicator ), and folding the sealing flap. Finish it. This machine also with the counter.

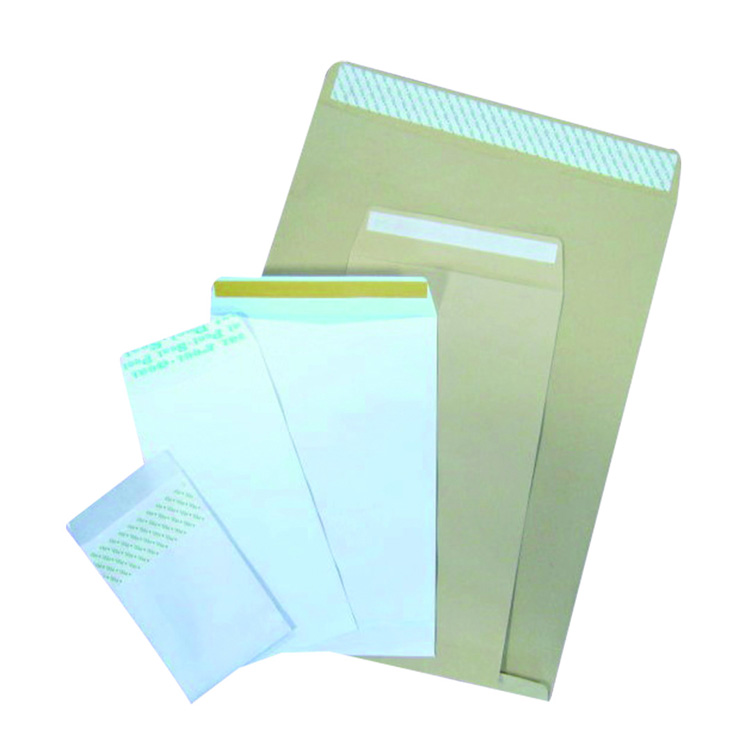

Sample:

Technical Parameter
Max working speed:12000 pcs/hour
Thickness of paper:70-157g/m2
Finished Envelope specification: (max) 260*400 mm
 (min) 100*160 mm
Paper Tape Width: 12---30mm
Paper Tape Length: 100---255mm
Motor power: 3kw
Hot Melt Applicator: Power, 3kw    Capacity,7L (optional machine module)
Power of vacuum pump:3kw /set *2 sets
Overall dimension(L*W*H):4000*1200*1500mm
Weight of machine:2800 kg
